C95400 Aluminum Bronze, also referred to as "9C", is a good alloy for medium to heavy loaded applications at medium to higher speeds. This alloy has excellent resistance to corrosion and finds use in many applications where the component is exposed to salt water. C954 Aluminum bronze is heat treat able and is used in application requiring a greater load bearing capacity than the standard C93200 Bearing Bronze material can hold.
Sizes listed by Inner Diameter x Outer Diameter

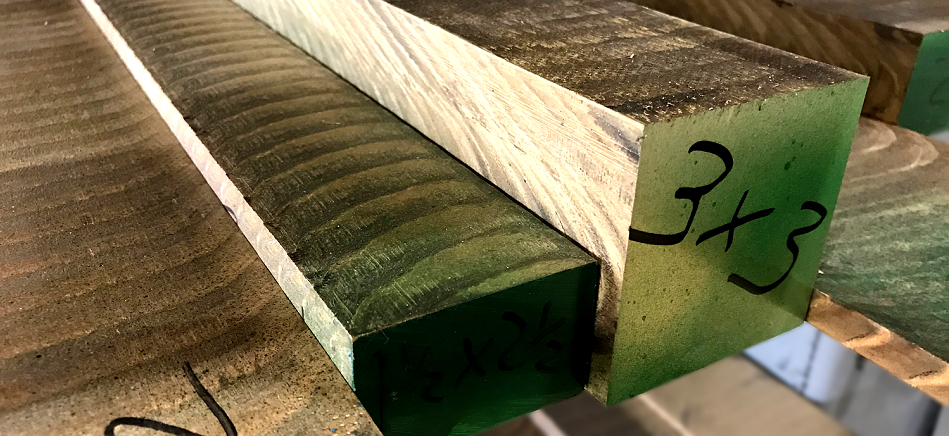

Sizes listed by thickness x width
Sizes listed by outside diameter
CDA C95400
ASTM B505
QQ-C-390 b Type III
MIL-B-16033 Comp. 3.
AKER Solutions MS-548
BAKER BMS K099
CAMERON MS-004046
DEF. STAN 02-833 PART 2 ISSUE 1
Cu- 83%
Fe- 3.0 - 4.0%
Ni- 1.5%
Al-10.0 - 11.5%
60
Mechanical Properties according to ASTM B505/B505M-18 NOTE: Compression Deformation Limit min 55 ksi/380 MPa
|
|||||||||||
Tensile Strength, min | Yield Strength, at .5% Extension Under Load, min | Elongation, in 2 in. or 50 mm min | Brinell Hardness (3000 kg load) | Remarks | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
ksi | MPa | ksi | MPa | % | typical BHN | ||||||
110 | 758 | 62 | 427 | 14 | 223 |
Physical Properties provided by CDA *Field Strength 16 kA/m
|
|||||||||||
US Customary | Metric | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Melting Point - Liquidus | 1693 °F | 923 °C | |||||||||
Melting Point - Solidus | 1625 °F | 885 °C | |||||||||
Density | 0.283 lb/in3 at 68 °F | 7.83 gm/cm3 at 20 °C | |||||||||
Specific Gravity | 7.83 | 7.83 | |||||||||
Electrical Conductivity | 8% IACS at 68 °F | 0.046 MegaSiemens/cm at 20 °C | |||||||||
Thermal Conductivity | 20.5 Btu/sq ft/ft hr/°F at 68 °F | 35.5 W/m at 20 °C | |||||||||
Coefficient of Thermal Expansion 68-572 | 12 · 10-6 per °F (68-572 °F) | 20.7 · 10-6 per °C (20-300 °C) | |||||||||
Specific Heat Capacity | 0.09 Btu/lb/°F at 68 °F | 377.1 J/kg at 293 C | |||||||||
Modulus of Elasticity in Tension | 14200 ksi | 97900 MPa | |||||||||
Magnetic Permeability* | 1.09 | 1.09 |
Fabrication Properties provided by CDA
|
|||||||||||
Joining Technique | Suitability | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Soldering | Poor | ||||||||||
Brazing | Poor | ||||||||||
Oxyacetylene Welding | Poor | ||||||||||
Gas Shielded Arc Welding | Poor | ||||||||||
Coated Metal Arc Welding | Good |
Treatment | Temp./Time - US | Temp./Time - SI | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Thermal Properties provided by CDA
|
|||||||||||
Stress Temperature | 500 | 260 | |||||||||
Solution Minimum | |||||||||||
Solution Maximum | |||||||||||
Solution Time | 0.0 | ||||||||||
Solution Medium | |||||||||||
Precipitation Value | |||||||||||
Precipitation Time | |||||||||||
Precipitation Medium | |||||||||||
Annealing Minimum | |||||||||||
Annealing Maximum | |||||||||||
Annealing Time | |||||||||||
Hot Works Minimum | |||||||||||
Hot Works Maximum |
