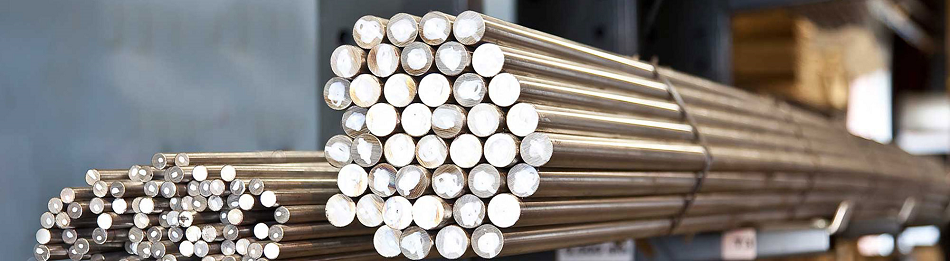

C673 Manganese Bronze is a manganese silicon bronze alloy. The addition of silicon helps this alloy achieve a high machinability rating of 70. C673 has excellent wear characteristics and the ability to be hot forged. It is often used as an alternative for many of the wrought phosphor bronze alloys in applications demanding a stronger material. This alloy is also corrosion resistant and can be soldered.
Sizes listed by outside diameter
CDA C67300
SAE J463
SAE J461
Alloy D5
QQ-C-390 B
Cu - 58.00% - 63.00%
Pb - 0.40 - 3.00%
Sn - 0.30%
Zn - Rem.
Fe - 0.50%
Ni - 0.25%
Al - 0.25%
Mn - 2.00 -3.50%
Si - 0.50 - 1.50%
70

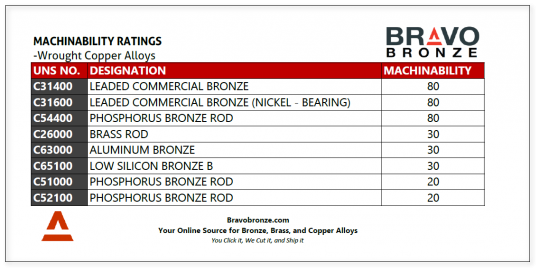

When it comes to machining wrought copper alloy based components, it's all about knowing what speeds and feeds to use, and what type of tooling is required. Many of these variables depend on the machinability of the material. With a wide variety of wrought copper alloys to choose from it is critical to get the machinability rating right. Best guesses equal broken tooling and scraped
Read MoreCut to Size Bar Stock - What It Means, and How It Benefits You

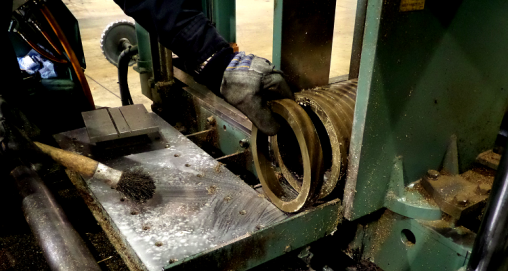

We use the term “cut to size” in a number of places on this site. But what are we actually talking about when we use this term? Cut to size bar stock means that we will cut your bar stock to the exact length you require. We don’t force you to buy any standard lengths or minimum purchase. In laymen’s terms, you only buy the material that you
Read MoreWhen it comes to machining bronze components, it's all about knowing what speeds and feeds to use, and what type of tooling is required. Many of these variables depend on the machinability of the material. With a wide variety of bronze alloys to choose from it is critical to get the machinability rating right. Best guesses equal broken tooling and scraped
