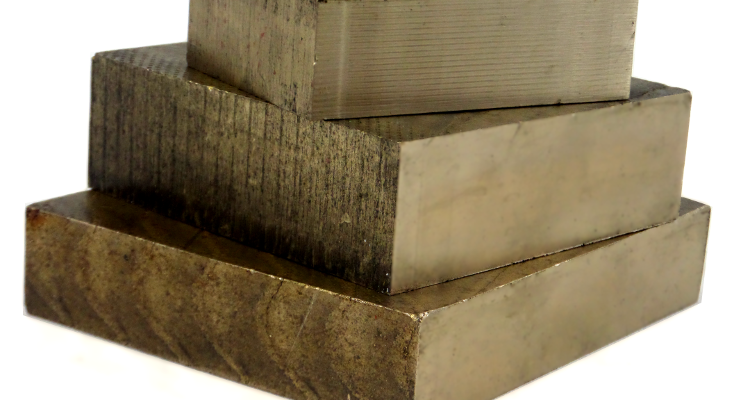

C95900 Aluminum Bronze

Specifications Sheets

CHEMICAL COMPOSITION:

Chemical Composition
(%max., unless shown as range or min.)
  Cu Al Fe Mn Ni(1)
Min./Max. Rem. 12.0-13.5 3.0-5.0 1.5 .50
Nominal - 12.7 4.0 - -
(1) Ni value includes Co.
Note: Cu + Sum of Named Elements, 99.5% min.



MECHANICAL PROPERTIES:

(measured at room temperature, 68 F (20 C)
Temper Section
Size		 Cold
Work		 Typ/
Min		 Temp Tensile
Strength		 Yield
Strength
(0.5% ext.
under load)		 Yield
Strength
(0.2%
offset)		 Yield
Strength
(0.05%
offset)		 El Rockwell
Hardness		 Vickens
Hard.		 Brinell
Hard.
  in. %   F ksi ksi ksi ksi % B C F 30T 500 500 3000
  mm.     C MPa MPa MPa MPa
As Centrifugal Cast
M02 0.0 0 SMIN 68 - - - - - - - - - - - 241
  0.0     20 - - - - - - - - - - - 241
As Continuous Cast
M07 0.0 0 SMIN 68 - - - - - - - - - - - 241
  0.0     20 - - - - - - - - - - - 241
As Sand Cast
M01 0.0 0 SMIN 68 - - - - - - - - - - - 241
  0.0     20 - - - - - - - - - - - 241

*Fatigue Strength: 100 x 10 6cycles,
unless indicated as [N]X 106.



APPLICABLE SPECIFICATIONS:

Product Specification
Centrifugal ASTM B271
Continuous ASTM B505
Ingot ASTM B30
Sand ASTM B148
