test:C86300 Bronze Solid Round Bar 1" Diameter

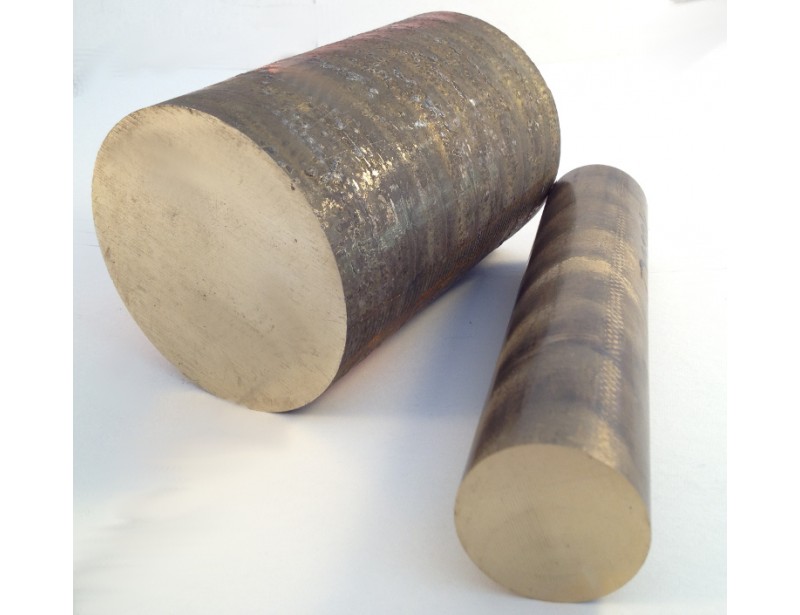

C86300 Bronze Solid Round Bar 1" Diameter

C86300 Bronze Solid Round Bar 1" Diameter

Question? We are here to HELP!

For tips and advice on the best products for your project, call us at 1.800.875.3558.

  • ITEM OVERVIEW

    SAE 430B bronze can operate at low speeds under heavy loads. This alloy has excellent mechanical qualities and good corrosion resistance. This alloy is compromised of copper, manganese, aluminum and iron. This combination raises the tensile strength.

    Chemical Composition:

    Cu - 60-66%

    Fe - 2.0 - 4.0%

    Zn- 22 - 28%

    Ni - 1.0%

    Mn - 2.5 - 5.0%

    Al - 5.0 - 7.5%

    Machinability - 8

    BHN - 223

    Tensile - 110 ksi

    Yield - 62 ksi

    Similar or Equivalent Specification

    ASTM B505

    ASTM B22

    SAE 430B

    MIL-C-22229, COMP 8

  • TOLERANCES

    Material will have extra stock to finish machine to stated sizes.
